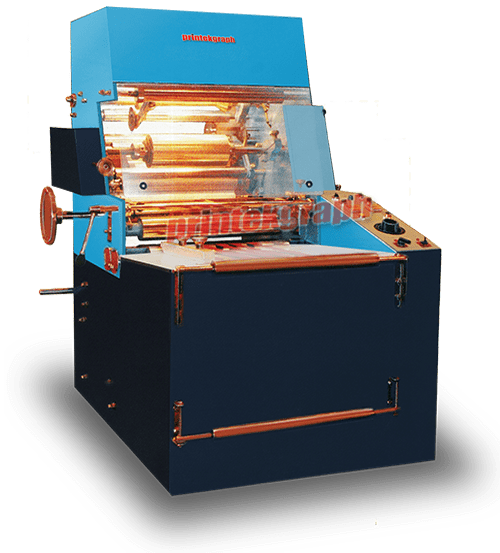

| FILM LAMINATION |
PR1NTEKGRAPH is an
improvement on design and
technical capabilities over the
existing popular domestic
model.
This machine brings out
the best in "Lamination
Technology."
It is designed &
developed on the principal of
using
water- based adhesive
system. Film of polyester,
BOPP,
PVC and Metallised are
pasted with an adhesive for
lamination on paper and
board. |
| |
Special Features
- Easily operated, practical and reliable.
- Sheet to reel and reel to attachment.
- Two unwinding stations with independent control.
- Film Slitting attachment on main unwind unit.
- Main unwinding unit with adjustment of film.
- Dancing roller for tension control.
- Banana roller for perfect traveling.
- Wrinkle removal brake fitted on free rollers.
- Plastic coated adhesive tray adjustable.
- Copper Coated chrome on all rollers.
Sizes : 18", 24", 32" & 60"
|
Technical Data
| Working Width max |
: |
600 mm (24") |
| Sheet size max |
: |
600 mm (24") |
| Variable speed drive sheet to Reel |
: |
800 metre/hr |
| Reel to Reel |
: |
1200 metre/hr |
| Main drive variable |
: |
1 H.P. |
| Power drive variable |
: |
2 K.W. |
| Measurement |
: |
7' x 5.5' x 7' |
|
|
|
| |
|
|
| |
Modifications Reserved. Specifications not binding. |
|
|
| |
| |
|
|
|
| |
|
| |
|
| |
