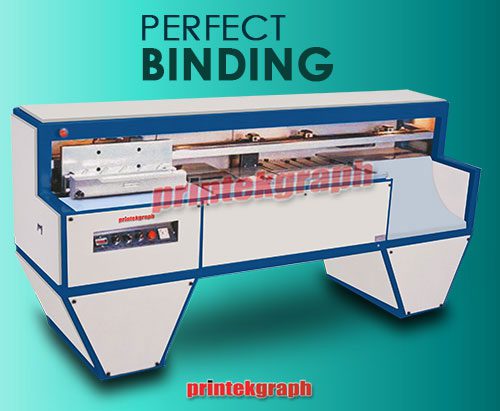

Single clamp perfect binders. With many variants the perfect binder is versatile and suitable for a wide variety of requirements.
The three roller gluing systems and separate side gluing tank add value and provide a superior spine gluing. |
|
| |
|
|
| |
Salient Features
- Single clamp perfect binder with easily adjustable book clamp.
- Milling station with cutter, notching teeth and a powerful dust extractor
- Gluing-various options available (see technical data below)
- Cover nipping station with facility to control the nipping pressure.
- Timers for adjusting feed-in time, cover nipping duration and delivery.
- Wide range of jobs can be done with easy job change over.
|
|
| |
|
|
|
|
|
| |
| |
Techanical Specifications:
|
|
|
| |
| Clamping |
Mechanical |
Mechanical |
Mechanical |
Mechanical |
| Spine Gluing |
Single Roller |
Three Roller |
Three Roller |
Three Roller |
| Side Gluing |
Built-in |
Separate |
Separate |
Separate |
Temperature
Control |
Thermostat |
Digital |
Thermostat |
Thermostat * |
| Spine Length |
70 - 430 mm |
70 - 430 mm |
70 - 320 mm |
70 - 480 mm |
| Spine Thickness |
2 - 60 mm |
2 - 60 mm |
2 - 80 mm |
2 - 60 mm |
| Mechanical Speed |
650 cph |
550 cph |
600 cph |
550 cph |
| Controls |
Electromechanical |
Electromechanical |
Electromechanical |
Electromechanical |
| Electric Supply |
400-415V, |
400-415V, |
400-415V, |
400-415V, |
|
3 Phase 50Hz |
3 Phase 50Hz |
3 Phase 50Hz |
3 Phase 50Hz |
| Power Consumption |
6.7 HP |
8.2 HP |
10.2 HP |
10.3 HP |
|
|
|
| |
|
|
|
| |
Modifications Reserved. Specifications not binding. |
|
|
| |
| |
|
|
|
| |
|
| |
|
| |
